Automatic Drum Siphon Filler
Stainless Steel | 1 Pint to 1 Gallon Capacity

Automatic Drum Siphon Filler | Stainless Steel | 1 Pint to 1 Gallon Capacity

The Automatic Drum Siphon Filler is designed to simplify high-volume filling tasks with precision, reliability, and efficiency. Ideal for operations that require consistent filling of containers ranging from 1 pint to 1 gallon, this unit ensures uniform performance across every application. Built with a 36-inch long 304 stainless steel filler tray and spouts made of durable 316 stainless steel, it is engineered for long-term use in demanding industrial environments...

Capable of filling 5 to 20 containers per minute, this siphon filler streamlines workflows while maintaining accuracy. A 316 stainless steel float valve automatically maintains tank levels, and liquid can be supplied by gravity or pump. The integrated check valve prevents drips when containers are removed, helping reduce waste and maintain a clean workspace. With its heavy-duty steel stand and five included saddle assemblies, this filler is a dependable, cost-effective solution for a variety of industries...

Key Features

• Wide Capacity Range: Automatically fills containers from 1 pint to 1 gallon consistently.
• High Output: Fills between 5 and 20 containers per minute.
• Durable Build: 36" long filler tray made from 304 stainless steel.
• Quality Components: 316 stainless steel spouts and float valve for longevity.
• Leak Prevention: Built-in check valve eliminates drips when containers are removed.
• Heavy-Duty Stand: Includes steel stand and 5 saddle assemblies for stability.

Additional Product Information

This siphon filler is designed for versatility, handling most low-viscosity, solid-free liquids with ease. It is particularly effective for industrial, commercial, and laboratory environments where efficiency and reliability are essential. The unit is simple to operate, with the automatic float valve ensuring that the tank level remains consistent without manual oversight...

When ordering, it is important to specify the diameter of the spouts required for your application. While spouts are not included with the filler, they are available separately and can be customized based on the container size. For half-gallon and gallon containers, five spouts with a 3/4-inch outside diameter are recommended. The filler can accommodate up to eight spouts for smaller containers, though this requires three additional saddle assemblies. Each complete spout consists of a gooseneck and nozzle. If you later switch to a different container size, only the nozzle assembly will need to be replaced, as the gooseneck remains universal...

Technical Data

• Description: Automatic Drum Siphon Filler
• Weight: 155 lbs
• Filling Capacity: 5–20 containers per minute
• Container Sizes: 1 pint to 1 gallon
• Filler Tray: 36" long, 304 stainless steel
• Spouts: 316 stainless steel (sold separately)
• Float Valve: 316 stainless steel
• Includes: Heavy-duty stand, trough, and 5 saddle assemblies
• Fluid Types: Compatible with most low-viscosity, solid-free liquids

Ideal Applications

• Industrial Filling: Reliable solution for bottling low-viscosity liquids.
• Chemical Processing: Safe and efficient handling of solid-free chemicals.
• Food & Beverage: Suitable for non-viscous consumables in compliant operations.
• Laboratory Use: Precise container filling for controlled experiments and tests.
• Commercial Production: Increases throughput and reduces labor costs in large-scale operations.

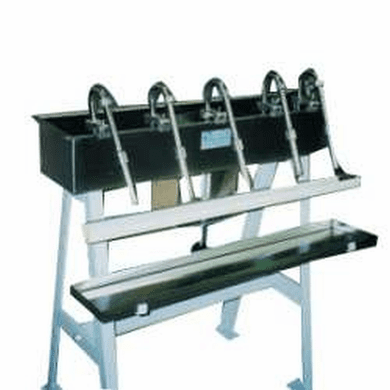

Picture shown above is 8SF3849

Item Number 8SF3849 BayTec Containers 800-560-2334
