Finish Thompson High Flow Pump - Tefc Motor - Polypropylene Pump Tube | 1/2 hp, 110 volts, 50/60 Hz, single-phase
Zoom

Finish Thompson High Flow Pump - Tefc Motor - Polypropylene Pump Tube 1/2 hp, 110 volts, 50/60 Hz, single-phase

Item Number# 8PFP-E1
$1,499.99

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • PDFs
  • Reviews

Description

Finish Thompson High Flow Pump - Tefc Motor - Polypropylene Pump Tube - 8PFP-E1

Continuous-duty rated for aggressive liquids Polypropylene, 316 stainless or PVDF models Designed for free-flowing liquids up to 2,000 cPs viscosity and 1.8 specific gravity. 40" long pump tube fits 2" bung opening. The seal-less design has a 30-minute run-dry capability without damage. Features double suction impeller. Polypropylene and Kynar® pumps have convenient variable orifice discharge fitting. Totally Enclosed Fan Cooled Motor (TEFC) is designed for corrosive environments. 1/2 hp and 1 hp, double insulated, 110 volts, 50/60 Hz, single-phase. The handle has a built-in switch, thermal overload protection with manual reset, 12' cord with plug. 1 hp motor includes speed regulator for precise adjustment of fluid flow. Open Drip-Proof Motor (ODP) is designed for non-corrosive environments. 1/2 hp, 110 volts, 50/60 Hz, single-phase. The handle has a built-in switch, thermal overload protection with manual reset, 12' cord with plug. Explosion-Proof Motor (EP) is 1/10 hp, double insulated, 110 volts, 50/60 Hz, single-phase, with 12' three-wire cord without a plug. CSA-Listed for Class I, Division I, Group D. Air Motor (Air) develops 1/2 hp, uses 17 – 25 CFM @ 50 – 80 psi. Supplied with a regulator valve and muffler. All pumps in this series have a 1" hose barb. Note: When pumping flammables, use only a stainless steel pump tube with an explosion-proof motor and be sure to use a static protection hose kit found in Accessories for Finish Thompson Pumps. Containers will also require grounding. See Bonding and Grounding Wires.s

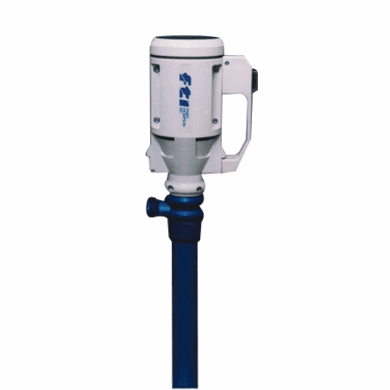

Shown 8PFP-E1

Features:

  • Internals: Inconel/polypro/Teflon®
  • Max. GPM: 40
  • Max. Temp.: 160ºF
  • Max.Viscosity: 500 cps
  • Motor: TEFC
  • Pump Tube: Polypro
  • Weight: 19 lbs.
  • Specifications

    • Motor Description TEFC 1/2 HP
    • Shaft Polypropylene
    • Max. Viscosity 500 cps
    • Weight19 lbs
    • Length 40"
    • Brand Finish Thompson Inc.

    Q & A's
