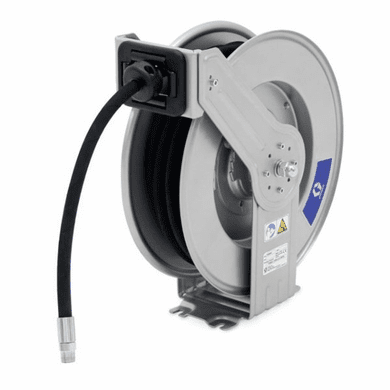

Graco LDX 1/2" x 50' Spring Rewind Oil Hose Reel with Hose Included
Zoom

Graco LDX 1/2" x 50' Spring Rewind Oil Hose Reel with Hose Included

Item Number# 8GRHEM004
$499.98
$600.00
(You Save 17%)

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • PDFs
  • Reviews

Description

Graco LDX 1/2" x 50' Spring Rewind Oil Hose Reel with Hose Included

Graco LDX Series 1/2 in. x 50 ft. Spring Driven Oil Hose Reel is an industrial-grade, spring-driven hose reel designed for efficient oil dispensing in various applications. Its robust construction and user-friendly features make it an ideal choice for small garages, repair facilities, and industrial manufacturing environments.

Key Features

  • Dual Pedestal Frame: Ribbed metal frame enhances stability and durability.
  • External Swivel Housing: Allows quick access to swivel seal for fast repairs.
  • Ball Bearing Swivel: Internal bearings reduce friction, ensuring smooth operation.
  • Adjustable Arm: Six-position arm adapts to various mounting configurations.
  • Compact Design: Accommodates up to 50 ft. hose while maintaining a small profile.
  • Spring Rewind Mechanism: Facilitates automatic hose retraction for convenience..


    • Product Description



    The Graco LDX Series 1/2 in. x 50 ft. Spring Driven Oil Hose Reel is engineered to provide reliable performance and longevity. Its all-metal construction, including a dual pedestal frame, ensures stability and robustness, even in demanding environments. The external swivel housing design allows for easy maintenance, reducing downtime during repairs.

    Equipped with a ball bearing swivel, the reel minimizes friction, resulting in smooth hose operation. The adjustable arm offers six positions, providing flexibility for various mounting setups, whether on a truck, bench, or overhead. Despite its compact size, the reel can accommodate a 50 ft. hose, making it suitable for applications where space is limited.

    The spring rewind mechanism ensures effortless hose retraction, enhancing user convenience and workplace safety by reducing hose clutter. Designed for oil applications, this hose reel operates efficiently within a temperature range of -40°F to 212°F and can handle a maximum working pressure of 1500 PSI.

    Technical Data



    1. Capacity: 50 ft. hose length (recommended)
    2. Hose Inside Diameter: 1/2 in. (12.7 mm)
    3. Maximum Working Pressure: 1500 PSI
    4. Temperature Range: -40°F to 212°F (-40°C to 100°C)
    5. Inlet/Outlet Size: 1/2 in. MNPT
    6. Weight: 48 lbs. (21.8 kg)


Specifications

    • Capacity: 50 ft. hose length (recommended)
    • Hose Inside Diameter: 1/2 in. (12.7 mm)
    • Maximum Working Pressure: 1500 PSI
    • Temperature Range: -40°F to 212°F (-40°C to 100°C)
    • Inlet/Outlet Size: 1/2 in. MNPT
    • Weight: 48 lbs. (21.8 kg)

Q & A's

Questions & Answers about Graco LDX 1/2" x 50' Spring Rewind Oil Hose Reel with Hose Included

Question: What is the maximum working pressure of the hose reel? By: Mark T.
Answer: The maximum working pressure is 1500 PSI.
Question: Can this reel be mounted overhead? By: Lisa R.
Answer: Yes, it can be mounted on a truck, bench, or overhead.
Question: Is the hose included with the reel? By: Kevin B.
Answer: Yes, the hose is included.
Question: What is the temperature range for operation? By: Sarah L.
Answer: It operates between -40°F and 212°F.
Question: Does it have an adjustable arm? By: Tom S.
Answer: Yes, it features a six-position adjustable arm.
Question: What materials are used in the construction? By: Emily D.
Answer: It is made of zinc-plated steel, brass, polyurethane, and nitrile rubber.
Question: What is the weight of the reel? By: Brian K.
Answer: The reel weighs 48 lbs.
Question: Is it suitable for indoor use? By: Angela M.
Answer: Yes, it is recommended for indoor environments.
