EP, Air Pump Motors 1200 CPS
Zoom

EP, Air Pump Motors 1200 CPS

Item Number# 8MD2
$799.99

  • Description
  • You May Also Need
  • Q&As
  • PDFs
  • Reviews

Description

Pump Tubes - Design a Lutz® Pump System to Fit Your Needs - 8MD2


  • Interchangeable pumps and motors eliminate cross-contamination potential
  • Direct-drive seal-less pumps reduce dry run failure
  • High volume rotor with flow rates up to 53 gpm
  • Delivery head up to 40 ft
  • Pump liquids up to 1,000 cPs
  • Temperatures to 212º F

    Pump tubes are offered in standard lengths of 27" for 30 gallon drums or smaller, 39" for 55 gallon drums and 47" for IBCs. SS pump tubes, recommended for flammables include a wall hanger, one 10' bonding wire and two 6' grounding wires. Select air or electric explosion-proof motors. PP pump tubes include wall hanger, 8' PVC 3/4" hose, two hose clamps and PP 2" bung adapter. PVDF pump tubes include a wall hanger. Electric motors listed are equipped with a bipolar on/off switch with single pole thermal over current release and a 16' power cord and plug. Explosion-proof Electric Motor has individual on/off buttons, low voltage release and 16' power cord (no plug). Rated Class I, Groups C/D and Class II, Groups F/G. Air motors for hazardous and non-hazardous duty. Hazardous duty motor has a built-in on /off switch, the non-hazardous duty air motor does not.

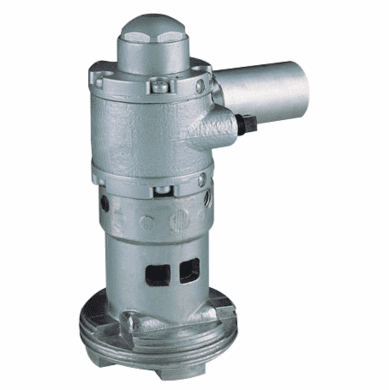

    Shown 8MD2.

    Features:

    Description: EP, air, 6900rpm @ 87 psi/32CFM
    Hazardous Duty: Yes
    Max.CPS: 1200
    Speed Control: No
    Weight: 4 lbs.
