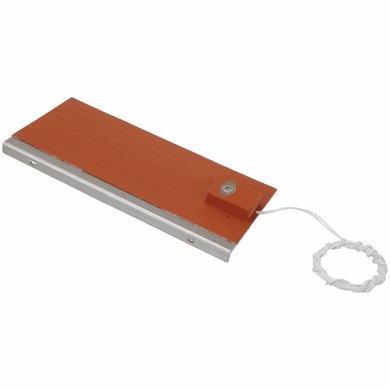

Enclosure Heaters Silicone Rubber 60w 2.5" x 6" No Thermostat
Free Shipping

Item Number# 8BHTSREH600
$73.98

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • Reviews

Description

Economy-Series - Silicone Rubber Heating Blanket60w | 2.5" x 6" (64 mm x 152 mm) | No Thermostat BriskHeat Silicone Rubber (TSREH) Enclosure Heaters Prevent condensation or freezing of electronics inside enclosures and panels. Select from available configuration options below of both 2.5" x 12" and 2.5" x 6" enclosure heaters, with and without built-in Thermostat controls. Panel heater provides protection to your valuable electronics with a simple heating solution!

Specifications

  • Operating voltage: 120VAC (other voltages available upon request)
  • Leads: 48" PFA extruded leads
  • Aluminum mounting plate has two mounting slots that are 1/4 by 5/32 centered in a 1/2 flange for mounting
  • Minimum exposure temperature: -70
  • Maximum exposure temperature: 392F
  • Bracket material: Aluminum
  • Bracket thickness: 0.090"
  • Overall thickness (heater and bracket): 0.140" (3.6mm) nominal
  • Mounting hole size: 1/4" x 5/32 (6mm x 4mm)
  • Mounting hole position on flange:6 Heater: centered on a 1/2" flange 4 apart.
  • Mounting hole position on flange:12 Heater: centered on a 1/2 flange 9 apart.
