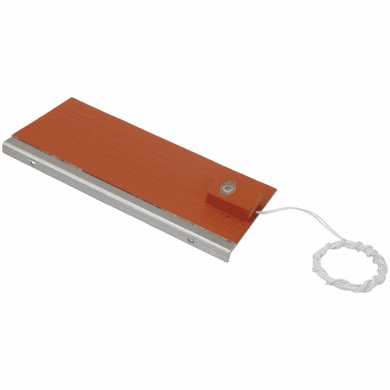

Enclosure Heaters Silicone Rubber 120w 2.5" x 12" 40°F to 60°F
Free Shipping

Item Number# 8BHTSREH1240
$106.98

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • Reviews

Description

Economy-Series - Silicone Rubber Heating Blanket120w | 2.5" x 12" (64 mm x 305 mm) | 40°F to 60°F (4°C to 15°C) BriskHeat Silicone Rubber (TSREH) Enclosure Heaters Prevent condensation or freezing of electronics inside enclosures and panels. Select from available configuration options below of both 2.5" x 12" and 2.5" x 6" enclosure heaters, with and without built-in Thermostat controls. Panel heater provides protection to your valuable electronics with a simple heating solution!

Specifications

  • Operating voltage: 120VAC (other voltages available upon request)
  • Leads: 48" PFA extruded leads
  • Aluminum mounting plate has two mounting slots that are 1/4” by 5/32” centered in a 1/2” flange for mounting
  • Minimum exposure temperature: -70°
  • Maximum exposure temperature: 392°F
  • Bracket material: Aluminum
  • Bracket thickness: 0.090"
  • Overall thickness (heater and bracket): 0.140" (3.6mm) nominal
  • Mounting hole size: 1/4" x 5/32” (6mm x 4mm)
  • Mounting hole position on flange:6” Heater: centered on a 1/2" flange 4 ” apart.
  • Mounting hole position on flange:12” Heater: centered on a 1/2” flange 9” apart.
