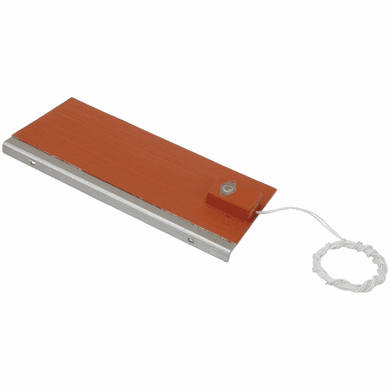

Enclosure Heaters Silicone Rubber 120w 2.5" x 12" 110F to 140F
Free Shipping

Item Number# 8BHTSREH12110
$106.98

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • Reviews

Description

Economy-Series - Silicone Rubber Heating Blanket120w | 2.5" x 12" (64 mm x 305 mm) | 110F to 140F (43C to 60C) BriskHeat Silicone Rubber (TSREH) Enclosure Heaters Prevent condensation or freezing of electronics inside enclosures and panels. Select from available configuration options below of both 2.5" x 12" and 2.5" x 6" enclosure heaters, with and without built-in Thermostat controls. Panel heater provides protection to your valuable electronics with a simple heating solution!

Specifications

  • Operating voltage: 120VAC (other voltages available upon request)
  • Leads: 48" PFA extruded leads
  • Aluminum mounting plate has two mounting slots that are 1/4 by 5/32 centered in a 1/2 flange for mounting
  • Minimum exposure temperature: -70
  • Maximum exposure temperature: 392F
  • Bracket material: Aluminum
  • Bracket thickness: 0.090"
  • Overall thickness (heater and bracket): 0.140" (3.6mm) nominal
  • Mounting hole size: 1/4" x 5/32 (6mm x 4mm)
  • Mounting hole position on flange:6 Heater: centered on a 1/2" flange 4 apart.
  • Mounting hole position on flange:12 Heater: centered on a 1/2 flange 9 apart.
