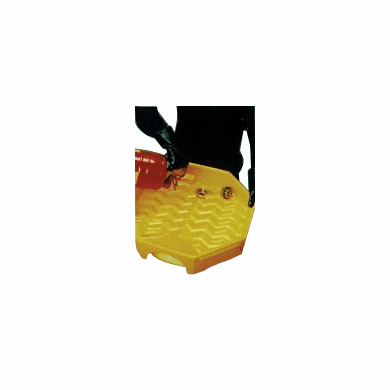

The Ultimate Poly Safety Funnel
Zoom

The Ultimate Poly Safety Funnel

Item Number# 8SPF55
Buy More, Save More!
QuantityPrice Each
1 - 5 pieces$180.06 ea.
6+ pieces$173.46 ea.

  • Description
  • Q&As
  • PDFs
  • Reviews

Description

  • Unique large octagon shape keeps drum tops clean
  • FM-Approved fill vent
  • 100% linear low density polyethylene funnels fit 30 and 55 gallon drums
  • Large diameter and high sidewalls provide 6 gallon capacity and reduce splashes and spills. Draining surface has elevated zig-zag channels; containers remain inverted and drain completely without resting in their own drainage. FM-Approved brass fill vent relieves pressure at 5 psi, has 6" long perforated flame arrestor to prevent flash-back ignition of drum contents. Funnel is 23 5/8" W x 5 1/2" H, fits 2" NPS bung opening of closed-head drum, permits use of fill gauge in 3/4" bung to prevent overfilling. Lockable hinged lid flips out of the way for draining, keeps contaminants out and reduces vapor emissions. Fill Gauge (optional) pops up when drum is nearly full, prevents accidental overfilling. High density polyethylene gauge fits 3/4" NPS bung opening.

    Features:
    Capacity: 6 gal
    Description: Funnel with FM-Approved fill vent
    Wt: 13 lb.
