SDC Digital On/Off Benchtop Temperature Controller 120v 0°C to 700°C J-Type
Free Shipping

Item Number# 8BHSDC120JC-A
$318.55

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • Reviews

Description

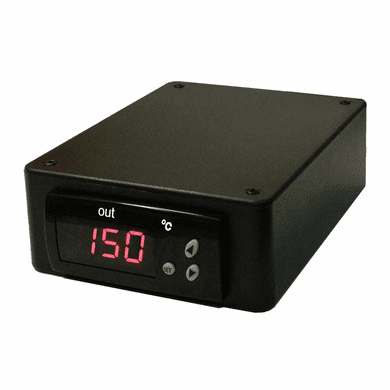

120v|0°C to 700°C|J-Type BriskHeat SDC Benchtop Digital Temperature Controller is compatible with a wide range of heaters and surface heating applications. The Digital Temperature Controller is designed for general-purpose use in indoor environments to control temperatures on applications requiring automatic temperature control.

Specifications

  • Small Unit Size: 5.5 in L x 4.25 in W x 1.75 in H
  • On-Off control
  • Temperature Control Range: 32°F to 999°F (°F models) or 0°C to 700°C (°C models) :Accuracy: +/- 1% FS
  • Includes J-type or K-type thermocouple sensor: 5-foot (1.5 m) factory installed
  • 120 VAC or 240 VAC power input
  • Relay output rated for 10A @ 240VAC
  • Sensor break options
  • Upper and lower limits of the setpoint can be adjusted
  • Set-point value can be adjusted by using single key
  • Hysteresis adjustable between 1 and 99°F/°C
  • Exposure Temperature:32°F to 158°F (0-70°C):80% humidity non-condensing
  • 5-foot (1.5 m) input power cord:120VAC unit = NEMA 5-15 plug
  • 5-foot (1.5 m) input power cord:240VAC unit = NEMA 6-15 plug
  • 5-foot (1.5 m) output power cord 120VAC unit = NEMA 5-15R receptacle
  • 5-foot (1.5 m) output power cord 240VAC unit = NEMA 6-15R receptacle
  • Internal buzzer for alarm condition / error
