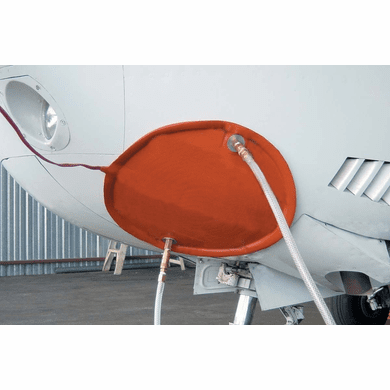

Composite Curing Heating Blanket with Vacuum Seal 120v 140w 6"Round Standard ACR Hot Bonder plug - “C” With Seal 8BHSRV512006DSC <br><font color="#008000" >Free Shipping</font>
Zoom

Composite Curing Heating Blanket with Vacuum Seal 120v 140w 6"Round Standard ACR Hot Bonder plug - “C” With Seal 8BHSRV512006DSC
Free Shipping

Item Number# 8BHSRV512006DSC
$436.98

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • Videos
  • PDFs
  • Reviews

Description

120v | 140w | 6" (152 mm) Round | Standard ACR Hot Bonder plug - “C” | With Seal 8BHSRV512006DSC

Specifications

  • Vacuum ports built into blanket eliminates the need for vacuum bagging materials
  • Blanket seal added around edge eliminates the need for tacky / sealant tape
  • Flexibility: With blanket seal: 3" (76mm) radii
  • Flexibility: Without blanket seal: 1/4" (6mm) radii
  • Smooth surface against repair
  • Heating element laminated between two layers of non-reinforced silicone rubber, 66 mil thick with a density of 66 oz/yd² (2237 grams/m²)
  • 450°F (232°C) maximum exposure temperature
  • Power density of 5 watts / in² (0.008 watts/mm²)
  • Dielectric strength of over 2000 volts
  • Moisture , chemical, and radiation resistant
  • Strain relief built through entire edge of blanket for increased durability
  • Power cord 6 feet (1.8m) long with power plug that is compatible with BriskHeat hot bonders. Other plug types are available upon request
