Cartridge Heaters 240 Volt
Free Shipping

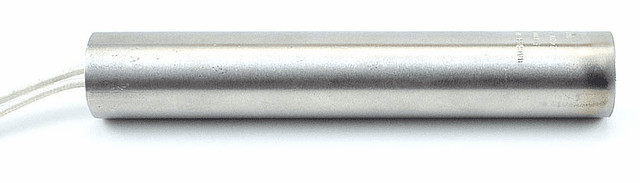

These durable cartridge heaters are swaged for greater thermal conductitivity, making them very efficient. There are many standard sizes available for immediate delivery with sheath lengths from 1 inch (25 mm) all the way up to 24 inches (610 mm), with diameters ranging from as small as 0.25 in (6 mm) all the way up to 0.78 in (19.8 mm.)

Voltage X Wattage X Sheath Diameter X Sheath Length

TIG-Welded End Disc: To prevent contamination and moisture absorption.

304 Stainless-Steel Sheath: For oxidation resistance in a wide variety of environments.

High-Purity Magnesium Oxide Fill: For maximum dielectric strength and thermal conductivity. Highly compacted for maximum heat transfer.

Nickel-Chromium Resistance Wire: For maximum heater life, and evenly wound for even heat distribution.

High-Impact Ceramic Cap:Retards contamination and is suitable for high vibration applications. Deep holes in cap prevent fraying of leads when bent.

High-Temperature DuraFlex 550 Lead Wires: Max exposure up to 1,022° F (550° C).
