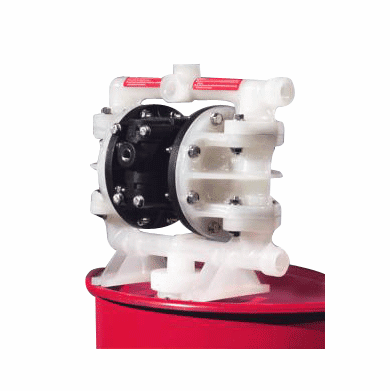

ALL-FLO Air-Operated Double Diaphragm Drum Pumps, Conductive Nylon/PTFE/Viton,Max-PassTM - 8CVD038

  • Pumps anything that pours – up to 22,000 CPS
  • Low maintenance with run-dry capability
  • Wide choice of pump materials for compatibility

    Lightweight, nonmetallic pumps handle a wide range of liquids, including water-based fluids, strong acids, and suspended solids. Self-priming and abrasion resistant pumps operate continuously at high or low speed without stalling, can run dry without damage. Adjustable flow rates. 40" suction tube and bung adapter is optional and may be purchased separately. Requires 1/4" air line, maximum pressure: 120 psi. Maximum temperature: 150º F. 5 year limited warranty.

    CVD purmp has conductive nylon housing, aluminum suction tube, Viton seals(stainless steel valve seats in 1/2" pump). Lug for static ground attachment for transferring flammable fluids.


    Capacity: 9 GPM
    Materials: Conductive Nylon/PTFE/Viton Max-PassTM
    Port Size: 3/8
    Weight: 6.25 lbs
