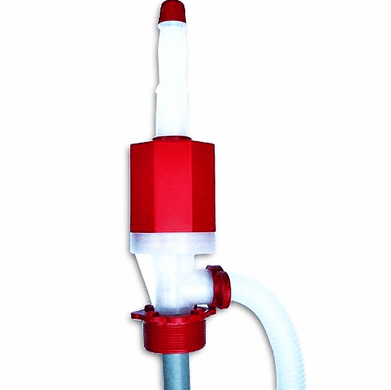

2" Nps Heavy Duty Siphon Drum Pump Polyethylene

2" Nps Heavy Duty Siphon Drum Pump Polyethylene

Item Number# 5165

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • PDFs
  • Reviews



Applicable Liquids
  • Petroleum products
  • light oils,
  • kerosene,
  • diesel oils,
  • deodorants,
  • corrosives,
  • chemical
  • insecticides,
  • soaps,
  • detergents,
  • mild acids,
  • anti-freeze,
  • liquid waxes,
  • thinner,
  • gasoline,
  • etc.

    1. Heavy duty / Fast Siphon Pump / BPA Free
    2. Designed for quick and easy emptying of 15, 30, and 55 gallon drums
    3. Made of polyethylene and PVC. Comes standard with a 2" NPS bung adapter.
    4. Can be sued with mild acids, light oils, water based fluids and toher materials which are NOT Corrosive to polyethylene and PVC (DO NOT use with lacquer thinners)
    5. Siphons to a lower level or pumps to higher level. Siphoning is controlled by the air vent on top.
    6. Discharge tube is designed to be flexible for better control of the flow
    7. Suction tube is cut at a andle to lay flat against the bottom for easier transfering

    Perfect for mildly corrosive
  • liquids up to 140° F
  • 7 GPM Flow Rate
  • Fits 15 – 55 gallon drums H-D
  • drum pump, w/PVC intake tube 2" NPS-Fine Thread  is ideal for water-based liquids, detergents, even some petroleum products. Simple, foolproof operation. Pump bellows to start flow, control siphon action with an air vent in the handle. Drum Pumps are 34" long, suction tube is easily trimmed to fit all size drums. Supplied with threaded bung adapter and 48" x 7/8" hose.

    HOW TO OPERATE No assembly required

    1. Insert suction tube into drum barrel and screw down threaded bung adapter.
    2. Position discharge hose into receiving the container. For siphoning, be the sure level of drum barrel is higher than that of receiving container.
    3. Grasp top handle and pump up and down. When discharge hose is completely full, you may cease pumping to allow siphoning action. Siphoning will slow down and then cease as supply lowers and receiver rises.
    4. To stop the flow of liquid, unscrew cap on the top of handle counterclockwise. Close cap again before next use.


    • Suction Type:Manual Up/Down Piston Type
    • Total Length: 45.3 inches
    • Suction Tube Length: 33.5 inches
    • Suction Tube Inner Diameter: 1.0 inch
    • Discharge Tube Length: 47.2 inches
    • Discharge Tube Inner Diameter: 0.89 inches
    • Head out Diameter: 3.29 inches
    • Net Weight:15.2 oz
