TTD Outdoor Use Digital On Off Temperature Controller 120v 0C to 537C
Free Shipping

Item Number# 8BHTTD999-K120-C
$573.85

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • Reviews

Description

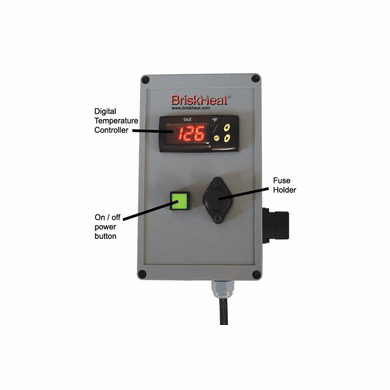

120v | 0C to 537C BriskHeat TTD Outdoor-Use Digital On/ Off Temperature Controllers are designed for general purpose use in outdoor or indoor environments to control the temperature of small tanks, drums, pipes, or other applications requiring automatic temperature control. The temperature controller comes standard with Type K thermocouple mini and standard connector inputs.

Specifications

  • 120 or 240VAC: 15 amps
  • Digital On/Off controller
  • Temperature units in oF (oC available upon request)
  • Audible alarm
  • Type K thermocouple mini and standard connector input*
  • Average accuracy of 1% Full Scale (FS)
  • Resolution: 1o
  • Hysteresis:5o
  • Suitable for outdoor use (must be mounted vertically)
  • Size: 8.00"L x 4.75"W x 3.75"D (203mm x 121mm x 95mm)
  • Operating exposure temperatures: 14F to 131oF (-10C to 55oC)
  • Storage exposure temperatures: -4F to 176oF (-20C to 80oC)
  • Input power cord 6 feet (1.8m) long with standard 3-prong plug:120VAC: NEMA 5-15
  • Input power cord 6 feet (1.8m) long with standard 3-prong plug: 240VAC: NEMA 6-15
  • Output receptacle:IP 67 four-pin (NEMA 6P equivalent) [mating plug assembly included]
  • Mounting feet included
