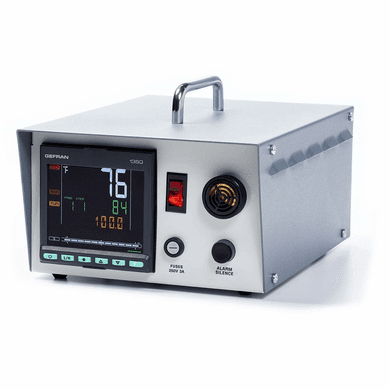

TT Composite Curing Temperature Controller 8BHTT30D-S16-240KIT <br>"CALL FOR QUOTE"
Zoom

Call For Quote

Item Number# 8BHTT30D-S16-240KIT
$0.01
This item is currently OUT OF STOCK!

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • Videos
  • PDFs
  • Reviews

Description

Call For Quote

Provides basic temperature control for composite curing applications, Portable, lightweight, and self-contained unit

Eight-segment ramp/soak control, Universal voltage and high amperage capability: up to 30 amps

Compatible with all styles of BriskHeat®composite heat curing blankets, Add vacuum capability with optional Venturi pump

Specifications

  • 400°F (204°C) maximum temperature control
  • Dual display shows set-point and actual temperature
  • Simple four-key user control
  • 14 programmable alarm types
  • Programmable to either °C or °F
  • Visual and audible alarms
  • Automatic tuning of PID parameters
  • Accuracy ±1 least significant digit
  • Input Voltage: 100-130VAC, 200-240VAC, 50-60Hz
  • 30 amp circuit breaker
  • Accepts standard and mini Type J thermocouple connectors
  • Sensor break protection
  • Auto/manual control ability
  • Program security lock levels
  • Output cord receptacle: NEMA L15-30R plug
  • 6 ft (1.8m) long input power cord with bare wire connection
