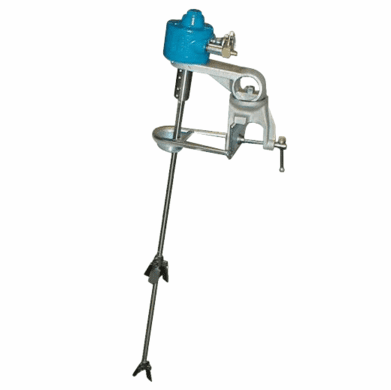

TEFC Electric Motor - Direct Drive Drum Mixers 1 HP
Zoom

TEFC Electric Motor - Direct Drive Drum Mixers 1 HP

Item Number# 890-1000DE1D
$2,019.98

  • Description
  • You May Also Need
  • Q&As
  • Reviews

Description

  • Thread-in bung mount and clamp mount 55-gallon drums
  • Electric, variable speed electric, exp-proof electric, and air motors
  • 316 stainless steel shaft and 3-blade collapsible propellers are standard

    Series 90 mixers offer a 2" NPT bung-mount for closed-head drums and an infinitely adjustable ball & socket clamp mount for precise positioning on open head drums, too. Lightweight and portable, these mixers are well suited for a variety of applications. Collapsible investment cast 316SS propellers fit through the 2” bung, open to the diameters specified in the table below. Props are attached to a 1/2" diameter x 34" long 316 stainless
    steel shaft.

    TEFC and Variable Speed Electric Motor is 115-230V, 1-Phase and ships complete with cord, plug, and on/off switch.

    Explosion-Proof Electric Motor is 115-230V, 1-Phase and does not include a cord, plug, or on/off switch.

    Air Motor is inherently explosion-proof rated at 60 PSI, 3,000 RPM @ 5-30 CFM.

    Features:
    Horsepower: 1
    No. of Props: 2
    Prop Dia.: 5"
    RPM: 1725
    Wt. (lbs.): 58
