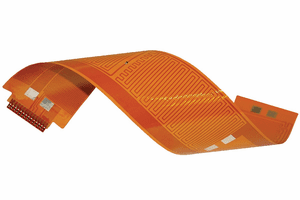

Etched Foil Heaters

Etched Foil Heaters
CONTACT US FOR A QUOTATION TODAY.

BriskHeat offers both standard and customized etched foil heating solutions. Our technical experts will integrate your specified application requirements into designing the ideal etched foil heater to fit your application. Custom capabilities of etched foil heaters provide the ability to design a heater to fit virtually any shape, cut-out, size you need with the materials and performance to fit your exact specifications.

  • Designed to conform to your exact requirements.
  • Quick turnaround prototyping.
  • Ideal For: OEM applications, analytical instrumentation, medical, semiconductor, electronics (Indoor and Outdoor), aerospace, and much more.
  • Key performance features that make etched foil heaters an ideal heater choice:
  • Ultra-thin profile
  • High watt densities
  • Uniform heat distribution
  • Very fast thermal response time
  • Extremely flexible ultra-tight bend radius
    • Etched Foil Heater
    Choice of outer materials to meet your environment and application:
    1. Polyimide film
    2. silicone rubber
    3. Attachment options:
    4. PSA (Pressure Sensitive Adhesive) backing
    5. Epoxies
    6. Pre-attached to your plates and/or object being heated
    7. Zone heating options:
    8. Single-zone
    9. multi-zone
    10. Dual-element heaters
    11. Integrated sensors, fuses, and control devices available
    12. Turnkey systems with temperature controlling devices available
    13. Materials options to meet your environment and application needs:
    14. Outer Material
    15. Maximum Exposure Temperature
    16. Total Thickness with PSA backing
    17. Advantages
    18. Silicone Rubber
    19. 450° F (232° C)
    20. 60 mil (0.06") (1.52mm)
    21. Moisture and chemical resistance
    22. Polyimide Film
    23. 392° F (200° C)
    24. 10 mil (0.010") (0.25mm)
    25. Thinnest and highest dielectric strength
