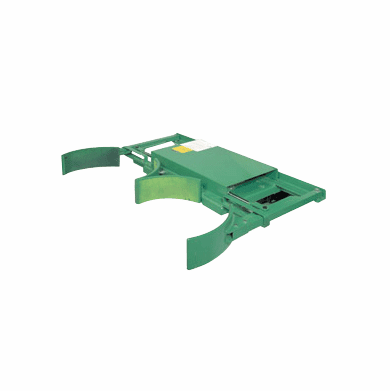

Self Powered, Single Steel Drum - Maxi Grip™ Hydraulic Drum Grabber
- You May Also Need
Self Powered, Single
Steel - Maxi Grip™ Hydraulic Drum Grabber - 86157
drum grabber securely grips drums or cylinders from 18" to 28" diameter.
Hydraulic power allows operator to grab, lift, transport and lower containers
over rough surfaces or even outdoors. Rubber-lined jaws won't mar drums.
Drive-in fork tubes, safety chain secures grabber to the forklift. Self-Powered
Grabber can be used on any lift truck. No modifications to the truck are needed.
Built-in hydraulic power unit uses two 12 volt deep-cycle batteries (included).
Delivers approximately 1000 clamping operations per charge. Supplied with
built-in battery charger, control box and coil cord that extends from 4' to 20'.
Forklift Powered Grabber requires forklift to be equipped with auxiliary valve control and quick connect hydraulic couplers. Fiber Drum Models have jaws lined with special soft white rubber that won't mar or deform the drum. Plastic Drum Model has special hinged oversized jaw that wraps around the drum. Jaws are lined with special soft white rubber. Prevents drum from deforming and slipping out during lifting and transport.
Fits Drums: Steel
Fork Spread (in.) :13
No. of Drums: 1
Usable Fork Tube Size (in.): 2 1/2 x 6 1/2 x 42
Wt. 525 lbs.
Jaw Size H x Dia. (in.): 6 x 18
