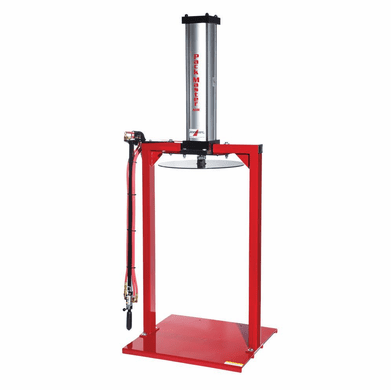

Pack-Master™ Trash Compactors, Air, 55 gallon
- You May Also Need
These structural steel units develop up to 4000 lbs. of compacting power. Crush paper, filters, aluminum cans, absorbents, disposable clothing. 1/4" thick ram plate. 18 month limited warranty. Manual Pack-Master™ is simple and safe to use. Slide an open-head drum (up to 39" high) onto the base and pump the ram lever like an automobile jack. Air Pack-Master™ offers higher speed operation. Connects to any compressed air source (70 - 250 psi). Safetydesigned control arm keeps operator's hands and face away from compactor, stops cycle if arm is lowered or dropped. Completely cycles in 1 minute. Requires 8 CFM @ 100 psi to develop 2600 lbs. of compaction force. Develops 3900 lbs. of compaction force at 150 psi. Spark Resistant Pack-Master™ has a high density polyethylene-covered ram plate and drum skid area and low density polyethylene-covered frame uprights.
Description: Air, 55 gallon
Dim. W x D x H (in.): 29 x 27 x 75
Wt.: 210 lbs.
Drop safety lever to secure pressure plate after retraction. Air trash compactor with two handed safety lever operation keeps hands and face away from barrel. When air is disconnected, pressure plate cannot fall. Fail safe in place if arm drops or is lowered.
Compact paper, filters, aluminum cans, absorbents, disposable clothing.
Connects to any compressed air source (70 - 250 psi).
Compacts material in standard 30 or 55 gallon steel drums (drum sold separately) Compaction force: 2600 lb @ 100 psi, 3900 lb @ 150 psi 1/4" thick pressure plate All welded structural steel and industrial grade components
Caution: Unit is not designed for crushing of glass containers or items that may shatter or contain volatile vapors.
Specifications Dimensions: 76" H x 36" W x 27" D
Required Operating Clearance: 80" H x 38" W x 48" D
Ship Weight: 220 lb on pallet
Drum Clearance: 39" H x 25.75" W
Air Cylinder: Commercial grade, 6" diameter x 24" stroke length with oversized 1.75" piston rod
Air Requirements: Maximum 150 psi Standard shop air (8 cfm @ 100 psi)
Warranty: 18 month limited warranty against defects in materials and workmanship
Pressure Plate: 55 gallon: 20" diameter (standard)
