Freeze Chiller, 4000 BTU/hr, R513a, 120V/1P/60hz
Zoom

Freeze Chiller, 4000 BTU/hr, R513a, 120V/1P/60hz

Item Number# 8NSC0330-110-1
$3,895.00
$4,323.00
(You Save 10%)

  • Description
  • Specs
  • Q&As
  • Reviews

Description

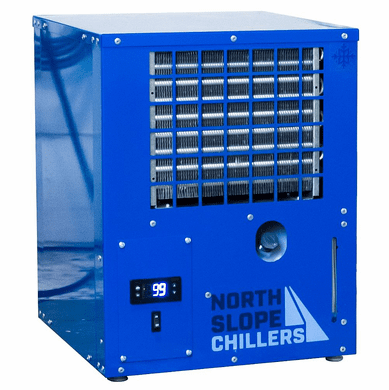

1/3 Ton Industrial Portable Chiller – Entry Level Air-Cooled Closed Loop System

Our 1/3 Ton Industrial Portable Chiller is the perfect solution for businesses looking for a reliable entry-level cooling system. Designed for smaller capacity applications, this unit combines efficiency, portability, and durability in one compact package. With its ability to freeze pumps at varying rates—1 GPM at 15 PSI, 4 GPM at 10 PSI, and 6 GPM at 7 PSI—it offers versatile performance tailored to your cooling needs. The fluid temperature range of 15°F to 65°F allows precise temperature control, making it ideal for specialized processes that demand consistency...

This portable chiller is engineered with industrial-grade components, including a brazed plate heat exchanger and a corrosion-resistant poly reservoir, ensuring dependable long-term use. The system allows for a 10°F differential, enabling it to cool contents down to 25°F quickly and effectively. Whether you are testing the waters with chilling systems or need a compact solution for single-container chilling, this unit is designed to deliver maximum performance without compromising on energy efficiency. For users who need economical chilling without the complexity of larger systems, this portable chiller is a smart and effective choice...

Key Features



  • Temperature Range: 15°F – 65°F
  • Entry Level Chilling: Closed loop, air-cooled chiller system
  • Industrial Pump: Built for durability and consistent performance
  • Compact Use: Ideal for single container chilling
  • Portability: Easy to move for flexible applications
  • Heat Exchanger: Brazed plate design for efficient cooling
  • Reservoir Capacity: 2.5-gallon poly tank
  • Durability: Corrosion-resistant poly reservoir construction


Additional Product Information



This portable chiller is designed for users who want a cost-effective cooling system without compromising on performance. The air-cooled closed loop system eliminates the need for additional water lines, keeping setup simple and maintenance minimal. Its compact form makes it an excellent choice for laboratories, pilot plants, and industrial applications where space is limited and precise temperature control is essential...

Built with an industrial-grade pump, brazed plate heat exchanger, and a rugged corrosion-resistant reservoir, this unit ensures reliable operation over extended periods. The portability of the system allows it to be moved between applications as needed, while the efficient cooling range makes it adaptable for a variety of smaller capacity processes. Whether you are cooling a single container, running test batches, or requiring a backup chiller solution, this unit delivers dependable performance at an economical price point...

Technical Data



  • Model No.: NSC0330
  • Fluid Temp Range: 15°F – 65°F
  • Ambient Temp Range: 35°F – 100°F
  • Refrigerant: R134a
  • Inlet/Outlet: 5/8″ Barbed
  • Pump Type: Continuous duty centrifugal
  • Pump Power: 60 Watt
  • Pump Pressure: 0 GPM @ 17 PSI; 3.3 GPM @ 13 PSI; 6.6 GPM @ 5 PSI
  • Reservoir Capacity: 2.5 Gallon Poly Tank
  • Cooling Capacity @ 90°F Ambient: 25°F (–3.9°C) – 500 BTU/hr (150 W); 45°F (7.2°C) – 2,300 BTU/hr (670 W)
  • Dimensions: 18-5/8″ L x 16″ W x 19″ H
  • Max Amps (FLA): 9.4 A @ 120/1/60
  • Recommended Breaker/Service (MCA): 15 Amp
  • Available Voltages: 120V AC / 1 Ph / 60 Hz
  • Shipping Weight: 112 lbs


Ideal Applications



  • Laboratories and pilot plants
  • Small-scale industrial chilling
  • Single-container cooling
  • Test batch chilling
  • Backup cooling system for critical processes
  • Portable cooling needs across facilities

Specifications

    1. Model No.: NSC0330
    2. Fluid Temp Range: 15°F – 65°F
    3. Ambient Temp Range: 35°F – 100°F
    4. Refrigerant: R134a
    5. Inlet/Outlet: 5/8″ Barbed
    6. Pump Type: Continuous duty centrifugal
    7. Pump Power: 60 Watt
    8. Pump Pressure: 0 GPM @ 17 PSI; 3.3 GPM @ 13 PSI; 6.6 GPM @ 5 PSI
    9. Reservoir Capacity: 2.5 Gallon Poly Tank
    10. Cooling Capacity @ 90°F Ambient: 25°F (–3.9°C) – 500 BTU/hr (150 W); 45°F (7.2°C) – 2,300 BTU/hr (670 W)
    11. Dimensions: 18-5/8″ L x 16″ W x 19″ H
    12. Max Amps (FLA): 9.4 A @ 120/1/60
    13. Recommended Breaker/Service (MCA): 15 Amp
    14. Available Voltages: 120V AC / 1 Ph / 60 Hz
    15. Shipping Weight: 112 lbs

Q & A's

Questions & Answers about Freeze Chiller, 4000 BTU/hr, R513a, 120V/1P/60hz

Q: What is the lowest temperature this chiller can reach? —Daniel M.
A: The system has a fluid temperature range of 15°F – 65°F and can cool contents down to 25°F when accounting for the 10°F differential.
Q: Is this chiller suitable for continuous operation? —Sarah J.
A: Yes, it is built with industrial-grade components designed for reliable continuous use.
Q: How portable is this unit? —Mike L.
A: The unit is lightweight for its category and designed to be moved easily between applications.
Q: What kind of pump does it use? —Rebecca P.
A: It uses an industrial pump capable of multiple flow rates depending on system pressure.
Q: Does it require an external water source? —John T.
A: No, it is a closed-loop, air-cooled system and does not need an external water line.
Q: What applications is this best suited for? —Emily S.
A: It is ideal for laboratories, pilot plants, single-container chilling, and as a backup or portable cooling solution.
