Manual Tilt, 72" Pour

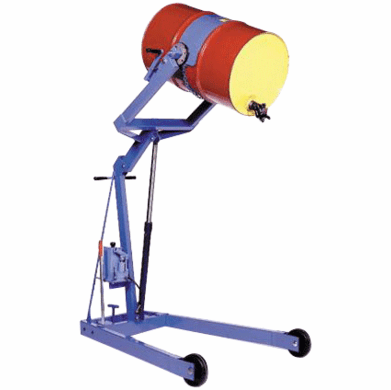

Height - MORSE™ Hydraulic Lift Karrier with Hydraulic Lift - 8400A72
Low effort drum handler accepts fully loaded drums up to 800 lbs. or half-full drums up to 500 lbs. Easy-loading cinch-type saddle handles 55 gallon steel drums (optional adapters for other sizes and types). Fool-proof hydraulic system lifts drum up to 96". Gear driven tilt allows drum to be rotated through 360° forward or reverse, holds drum at any angle desired. All welded steel frame rolls easily on two 8" polyolefin wheels and two 4" swivel casters. Independent floor lock. Hand-operated hydraulic pump gives full lift in about 45 strokes. Tilting gear-drive has a manual hand crank or chain wheel, depending on lift height. Spark-resistant models available by special order.
400 Manual Tilt Series
Model 400A60 with 60" pour height, includes hand crank installed. 400 Manual
Tilt Series Model 400A72 with 72" and 400A96 with 96" pour height, include chain
R = Reach (+ or -) of the drip edge of the drum in a perfectly horizontal position in relation to the forward point of the front wheels when the unit is at its full dispensing height. See illustration.
Dim. (in.) H: 55
Dim.(in.) L : 60
Dim.(in.) R: 6
Dispensing Ht. (in.). 72
O.D. (in.): 44
Wt. (lbs.): 311
