Junction Boxe 1/2 10.00

Junction Boxe 1/2 10.00

Item Number# 8BHJBM050

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • PDFs
  • Reviews


Out of Stock Junction Boxe 3/4 10.00

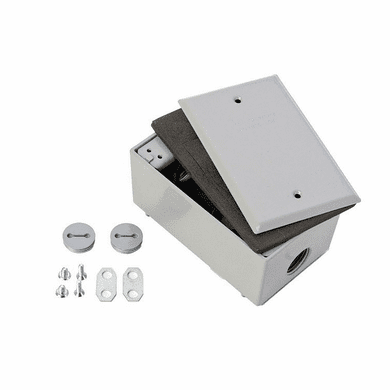

3/4 in (NPT) 10.00 in (254 mm) Metallic junction boxes provide environmental protection for electrical connections. This Electrical Junction Box has a watertight cover; preventing water from entering into your electrical box splice connections. Suitable for use in ordinary and wet locations. NEMA 3R rated with gasket and cover. The electrical box is Copper-free aluminum cast box.

  • Used for heating cable input power connections and electrical splice connections.
  • Suitable for use in ordinary and wet locations.
  • Standard NPT threaded hub makes conduit direct connection installations easy.
  • 3-Hub design provides versatility for easy installation.
  • Two closure plugs included for single-hub use.
  • Reinforced threaded connector outlets for increased stability.
  • Durable powder coat finish.
  • Eight box mounting options with detachable lugs provided.
  • Ground screw installed.


    Junction Boxes
    1. Copper-free aluminum cast box
    2. Dimensions:JBM050 1/2” NPT box: 2” x 4-1/2” x 2-3/4” (51mm x 114mm x 70mm)
    3. Dimensions:JBM075 3/4” NPT box: 2” x 4-1/2” x 2-3/4” (51mm x 114mm x 70mm)
    4. Dimensions:JBM100 1” NPT box: 2-5/8” x 4-1/2” x 2-3/4” (67mm x 114mm x 70mm)
    5. NEMA3R rated

Q & A's

Questions & Answers about Junction Boxe 1/2 10.00

Question: "What is self-regulating cable?"
Answer: "Self-regulating cable, also known as heat tape or heat trace, is a semi-flexible heating cable that automatically regulates its heat output based upon surface temperature and ambient conditions. It is often used for freeze protection applications to wrap or trace pipes, tanks, vessels, roofing, and much more."
Question: "What is a Class I/Division 1 environment?"
Answer: "Class I/Division 1 is an environment in which ignitable concentrations of flammable gases or vapors may exist under normal operating conditions, uring repair and maintenance, or where faulty equipment might release these flammable gasses or vapors."
Question: "Where do I find Class I /Division 1 environments?"
Answer: "Common industries include Oil, Hydrocarbon & Gas Exploration and Refining, Chemical Manufacturing/Processing, Paint Production, Mining, Coal Processing, and many more."
Question: "How much heat does selfregulating cable generate?"
Answer:Depending upon model and wattage, heat output can vary greatly. Maximum operating temperatures range from 150°F to 392°F (65°C to 120°C), but because of the selfregulating design, actual temperatures are normally much lower.
Question: "What is the maximum allowable circuit length?"
Answer: "Depending on wattage, voltage, and circuit capacity, circuit lengths can range from 32 ft to 660 ft."
Question: "How do I select the best heating cable for my application?"
Answer: "BriskHeat provides, at no charge, a full-service heat-loss calculation and engineering support to make a recommendation based on the specifications of your application."
Question: "Do I need to insulate over the cable?"
Answer: "Yes, insulation is always recommended to maximize thermal performance and efficiency."
Question: "What insulation should I use with Self-Regulating heating cable?"
Answer:"Depending on the application, BriskHeat offers two types of insulation; Insul-Lock pre-formed foam insulation for pipe, and Silver-Series cloth insulators for pipe, valves, flanges, etc., as well as custom designed insulators. Contact BriskHeat to determine which best fits your requirements."
