Heating Cord (HTC) With SDC Temperature Controller Bundle 120v 125w 0°C to 600°C J-Type <br><font color="#008000" >Free Shipping</font>
Zoom

Heating Cord (HTC) With SDC Temperature Controller Bundle 120v 125w 0°C to 600°C J-Type
Free Shipping

Item Number# 8BHSDCJCA-HTC451002
$430.98

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • PDFs
  • Reviews

Description

120v | 17w | 32°F to 999°F | J-Type

Value-Priced Bundles: Save $ by ordering these heaters and temperature controllers together

FEATURES HTC Heating Cord
  1. Heating cords designed for use on small tubes, vessels, or any application where space is limited.
  2. Extremely flexible heating cords can be wrapped around objects as small as 1/8" (3mm) diameter.
  3. Rapid thermal response provides accurate heat when you need it.
  4. Multi-stranded resistance wire heating element provides exceptional flexibility and durability.
  5. Fiberglass outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
  6. Available in a wide variety of length and width configurations.
  7. Ideal for laboratory, R&D, gas tubing, production, maintenance, temporary heat, and more.
  8. Safe for use with glass and electrically conductive metal surfaces.
  9. Choice of power leads on same end or opposite ends to suit your electrical needs.
  10. Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
  11. Temperature controller is required for safe operation of this product.
  12. Built-in split-plug design easily connects to your choice of temperature controlling device.

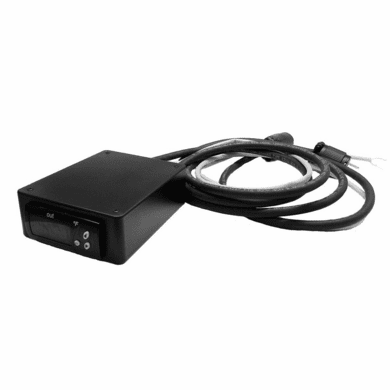

  13. SDC Digital Benchtop Temperature Controller
  14. Compact, digital on/off temperature controller
  15. Easily programmable (°C or °F)
  16. Compatible with a wide range of heaters and applications
  17. Fused output for added safety
  18. Includes factory installed thermocouple sensor

Specifications

  • Maximum exposure temperature: 900°F (482°C)
  • Diameter: 3/16” (4.8mm)
  • Construction:Fiberglass knit and braided heating element
  • Construction:Fiberglass knit and braided outer sheath
  • Power density:Standard: 21 W/in(68 W/m)
  • 24" (610mm) power leads with:120VAC: Separable 2-prong split-plug (NEMA 1-15)
  • 24" (610mm) power leads with:240VAC: Crimped ferrule wire connection
  • SDC Digital Benchtop Temperature Controller
  • Temperature control range: 0°C to 600°C or 32°F to 999°F
  • Input power cord length: 5ft (1.5m)
  • Output power cord length: 5ft (1.5m)
  • Thermocouple length:5ft (1.5m)
  • 10A Fused output

Q & A's

Questions & Answers about Heating Cord (HTC) With SDC Temperature Controller Bundle 120v 125w 0°C to 600°C J-Type
Free Shipping

Question: Do You Have A Heating Tape Guide?. By Sandra E.
Answer: Yes!, Please see PDFs listed on This Page.

Ask a question about Heating Cord (HTC) With SDC Temperature Controller Bundle 120v 125w 0°C to 600°C J-Type
Free Shipping
. Click here
