Harsh Environment Constant-Wattage Heating Cable 120v 12 W/ft <br><font color="#008000" >Free Shipping</font>
Zoom

Harsh Environment Constant-Wattage Heating Cable 120v 12 W/ft
Free Shipping

Item Number# 8BHKECAB12120
Buy More, Save More!
QuantityPrice Each
1 - 99 pieces$10.98 ea.
100 - 999 pieces$9.98 ea.
1000 - 4999 pieces$9.48 ea.
5000+ pieces$8.98 ea.

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • PDFs
  • Reviews

Description

120v | 12 W/ft (40 W/m)

  1. Ideal for a wide range of high temperature applications in harsh corrosive environments up to 500°F (260°C)
  2. Constant Watt - precise and constant temperature output regardless of ambient and surface temperatures.
  3. Ideal heating cable for long run applications.

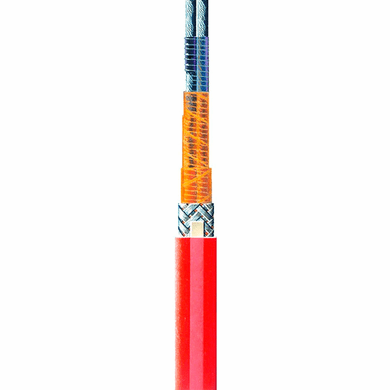

  4. Durable construction: Extreme protection PFA fluoropolymer extruded jacket over tinned copper braid.
  5. Easily installed around most piping and equipment.
  6. Can be cut-to-length and terminated at the job site.
  7. Approvals for ordinary and hazardous area environments.

Specifications

  • Maximum exposure temperature 500°F (260°C)
  • Available 4, 8, and 12 watts/ft (13, 26, and 39 watts/m)
  • Available voltages 120, 208, 240, 277, and 480VAC
  • Circuit lengthsup to 1,240ft (378m)
  • ResistantMoisture, chemical, flame, and radiation
  • 12AWG bus wires
  • Dimensions 0.2" x 0.3" (5 x 8mm)
  • 41 lb. (19kg) per 500-foot (152m) spool

You May Also Need

Q & A's

Questions & Answers about Harsh Environment Constant-Wattage Heating Cable 120v 12 W/ft
Free Shipping

Question: "What is self-regulating cable?"
Answer: "Self-regulating cable, also known as heat tape or heat trace, is a semi-flexible heating cable that automatically regulates its heat output based upon surface temperature and ambient conditions. It is often used for freeze protection applications to wrap or trace pipes, tanks, vessels, roofing, and much more."
Question: "What is a Class I/Division 1 environment?"
Answer: "Class I/Division 1 is an environment in which ignitable concentrations of flammable gases or vapors may exist under normal operating conditions, uring repair and maintenance, or where faulty equipment might release these flammable gasses or vapors."
Question: "Where do I find Class I /Division 1 environments?"
Answer: "Common industries include Oil, Hydrocarbon & Gas Exploration and Refining, Chemical Manufacturing/Processing, Paint Production, Mining, Coal Processing, and many more."
Question: "How much heat does selfregulating cable generate?"
Answer:Depending upon model and wattage, heat output can vary greatly. Maximum operating temperatures range from 150°F to 392°F (65°C to 120°C), but because of the selfregulating design, actual temperatures are normally much lower.
Question: "What is the maximum allowable circuit length?"
Answer: "Depending on wattage, voltage, and circuit capacity, circuit lengths can range from 32 ft to 660 ft."
Question: "How do I select the best heating cable for my application?"
Answer: "BriskHeat provides, at no charge, a full-service heat-loss calculation and engineering support to make a recommendation based on the specifications of your application."
Question: "Do I need to insulate over the cable?"
Answer: "Yes, insulation is always recommended to maximize thermal performance and efficiency."
Question: "What insulation should I use with Self-Regulating heating cable?"
Answer:"Depending on the application, BriskHeat offers two types of insulation; Insul-Lock pre-formed foam insulation for pipe, and Silver-Series cloth insulators for pipe, valves, flanges, etc., as well as custom designed insulators. Contact BriskHeat to determine which best fits your requirements."
