Heavy-duty drum rotator gently mixes dry and liquid materials thoroughly and efficiently. Four 6" diameter neoprene drive wheels and four 6" diameter neoprene idler wheels provide positive support. Solid 1" diameter drive shaft turns on ball bearings for low maintenance, long life. Factory-set gear reducer provides fixed speed 10, 20, or 30 RPM*.
Liquid load capacity per drum: 1,000 lb.
Dry load capacity per drum: 400 lb. @ 10 RPM, 300 lb. @ 20 RPM, 250 lb. @ 30 RPM.
Variable Speed Model rotates drums at any desired speed between 10 and 40 RPM. Has easy-to-use hand control knob.
TEFC Motor (Totally Enclosed Fan Cooled) is 230/460V, 3-Phase.
EP Motor (Explosion-Proof TEFC) is 230/460V, 3-Phase rated for Class 1, Group D and Class 2, Groups F and G.
Air Motor is 1 HP, uses 40 CFM @ 40 – 60 PSI.
Optional Idler Attachment accepts 5 gallon pails.
Bin Dim. D x W x H: 24" X 92"
Description: Dual drum rotator
Wt.: 495 lb.

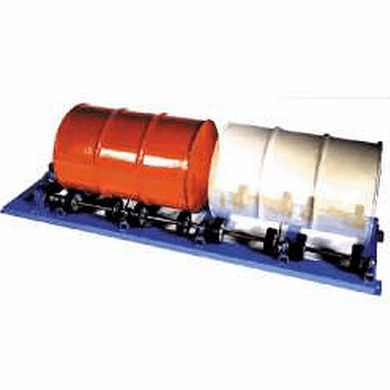

Heavy-duty double drum rotator gently mixes liquids or dry materials thoroughly and efficiently either through variable speed rollers or fixed speed rollers. It is designed to rotate one or two drums at a time. Each roller has four 6 inch diameter neoprene drive wheels and four 6 inch diameter neoprene idler wheels to provide positive support. It operates on an Inverter Duty 1/2 HP, 230/460V 3-phase TEFC motor. Optional Idler attachment to handle 1 – 5 gallon pails is available (SKU 5-5154-2). Variable speed range is 1 – 38 RPM.
The capacity, per drum, for liquid is 1000 lb and for dry product it is 200 lb @ 40 RPM or 400lb. @ 10 RPM. A shifting dry load exerts greater stress on the drum roller than the fluid motion of a liquid load. This drum roller handles steel drums 6 inch–28 inch diameter, up to 40 inches tall.
Ensures consistency Eliminates spills, transfer time and clean-up
Made in the USA
- Description: Dual drum rotator
- HP: 1
- Motor Description: Air
- Wt.: 495 lb
- Length: 94"
- Width: 24"
- Height : 17"
You May Also Need
Q & A's
Questions & Answers about Dual Drum, Variable Speed, TEFC - Heavy-Duty Drum Rotator
- Question: What Sized Drum does it hold. Jim B.
- Answer:30 to 55 Gallon
