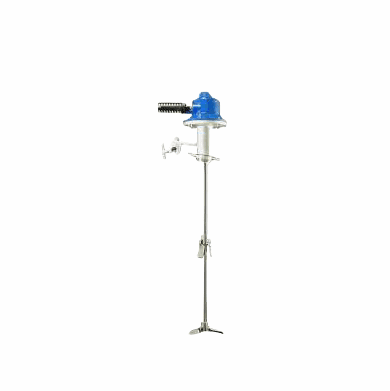

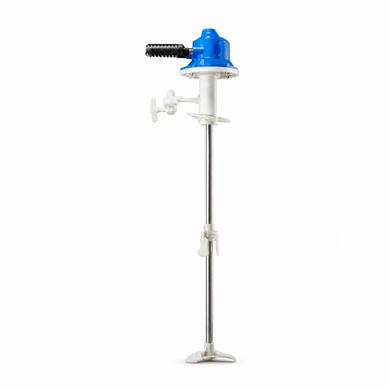

Direct Drive, Air Motor - Closed-Head Drum Mixers 1 HP
- You May Also Need
Series 91 agitators provide a nearly air tight seal by threading directly into standard 2" NPT bung hole. The mount is permanently angled to achieve the optimum mixing position. Collapsible propellers allow for easy installation, unfold to the diameters specified in the table below. Direct drive models are ideal for thinner liquids. Gear-drive models handle thicker liquids.
TEFC Motor (Totally Enclosed Fan Cooled) is 115-230V, 1-Phase, ships complete with cord, plug, and on/off switch.
EP Motor (Explosion-Proof) is 115-230V, 1-Phase and does not include a cord, plug or on/off switch.
Air motor is inherently explosion-proof, rated at 60 PSI, 3,000 RPM @ 5-30 CFM.
Motor: 1 HP
No. of Props: 2
Prop Dia.: 6"
Shaft Dia. x L: 5/8" x 34"
Wt.: 19 lbs.
