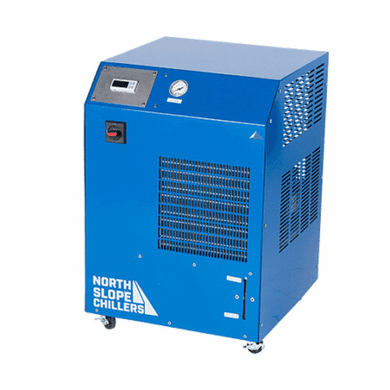

Freeze Chiller, 6000 BTU/hr, R513a, 120V/1P/60hz
Zoom

Freeze Chiller, 6000 BTU/hr, R513a, 120V/1P/60hz

Item Number# 8NSC0500-110-1
$5,663.00
$6,285.00
(You Save 10%)

  • Description
  • Specs
  • Q&As
  • Reviews

Description

Freeze 1/2 Ton Industrial Chiller – Air-Cooled, Standalone Process Cooling Unit

The Freeze 1/2 Ton Industrial Chiller is a reliable, U.S.-built cooling solution designed for standard process applications requiring precision and durability. Engineered by a team of expert designers and constructed with heavy-duty materials, this chiller is built to withstand demanding environments while maintaining consistent performance. With a cooling capacity of 6,000 BTU/hr at rated conditions, it is perfectly suited for smaller-scale operations that require accurate temperature control in a compact, standalone system...

This unit is optimized for indoor operation and is rated for ambient temperatures ranging from 40°F to 100°F, with optional configurations available for extended ranges. Equipped with a hermetically sealed Copeland compressor, continuous-duty pump, and brazed plate heat exchanger, the Freeze 1/2 Ton Chiller ensures efficiency, stability, and long service life. Its powder-coated steel enclosure adds durability, while additional built-in features like service valves, access ports, fluid level indicators, and electronic programmed temperature control deliver ease of use. Backed by ISO-certified U.S. manufacturing and fast industry lead times, this chiller is a trusted solution for process cooling...

Key Features



  • Ambient Temperature Rating: 40°F – 100°F
  • Compressor: Hermetically sealed Copeland unit
  • Pump: Continuous duty, non-ferrous construction
  • Piping System: Non-ferrous, corrosion-resistant design
  • Pressure Gauge: 0–100 PSI discharge pressure gauge
  • Refrigerant: Environmentally friendly R134a
  • Cabinet: Powder-coated steel for durability
  • Construction: Heavy-duty, U.S. built with fast lead times


Additional Product Information



The Freeze 1/2 Ton Chiller is designed for performance and reliability in a wide range of process cooling environments. Its brazed plate heat exchanger maximizes thermal transfer efficiency, while the electronic programmed temperature controller ensures stability within ±2°F. Built-in gauges and sensors provide accurate feedback on process conditions, enabling consistent monitoring and easy maintenance. With ETL certification and ISO 9001:2015 manufacturing standards, this chiller meets rigorous quality and safety requirements, making it a dependable choice for industrial applications...

Every component of this chiller has been carefully selected to enhance longevity and reduce downtime. The non-ferrous piping system prevents corrosion, while features such as inline strainers, access ports, expansion valves, and low-pressure switches ensure smooth operation under varying conditions. Designed as a standalone system, the Freeze 1/2 Ton Chiller is both versatile and adaptable, with optional upgrades including anti-backflow protection, integrated heating, external temperature monitoring, and alternate pump configurations. These features, combined with its compact footprint, make it a cost-effective yet powerful solution for precision cooling needs...

Technical Data



  • Working Temperature Range: 40°F (4.5°C) – 75°F (24°C)
  • Temperature Stability: ±2°F
  • Cooling Capacity @ 70°F Ambient: 40°F – 3,000 BTU/hr (880 W); 57.5°F – 5,800 BTU/hr (1,700 W)
  • Ambient Temperature (Standard): 40°F – 100°F
  • Pump Performance: 0 GPM @ 50 PSI; 2 GPM @ 25 PSI; 4 GPM @ 0 PSI
  • Controls: Electronic programmed temperature controller with setpoint & process readout
  • Compressor: Copeland reciprocating
  • Heat Exchanger: Brazed plate design
  • Refrigerant: R513a
  • Max Heat Rejection: 8,700 BTU/hr (2.5 kW)
  • Pump: Continuous duty, 1/3 HP fixed displacement pump with bypass
  • Inlet/Outlet: 1/2″ NPT
  • Reservoir: 4-gallon poly tank
  • Frame: Galvanized steel
  • Enclosure: Powder-coated steel with access panels
  • Warranty: 1-Year Standard
  • Certifications: ETL 3170655; UL STD 1994; CAN/CSA STD C22.2 No. 236
  • Manufacturing: U.S.A., ISO 9001:2015 Certified
  • Voltages Available: 120VAC / 1P / 60Hz (Standard); 208–240VAC / 1P / 60Hz
  • Max Amps (FLA): 15.1 A (std); 9.2 A
  • Recommended Breaker/Service (MCA): 18 A (std); 15 A
  • Optional Upgrades: Anti-backflow, process heating, pass-through, external monitoring, alternate pumps/controllers


Ideal Applications

  • Standard process cooling
  • Indoor industrial cooling systems
  • Laboratories and pilot plants
  • Precision applications requiring ±2°F stability
  • Small to medium-scale industrial production
  • Facilities requiring fast lead-time, U.S.-made equipment

Specifications

    1. Working Temperature Range: 40°F (4.5°C) – 75°F (24°C)
    2. Temperature Stability: ±2°F
    3. Cooling Capacity @ 70°F Ambient: 40°F – 3,000 BTU/hr (880 W); 57.5°F – 5,800 BTU/hr (1,700 W)
    4. Ambient Temperature (Standard): 40°F – 100°F
    5. Pump Performance: 0 GPM @ 50 PSI; 2 GPM @ 25 PSI; 4 GPM @ 0 PSI
    6. Controls: Electronic programmed temperature controller with setpoint & process readout
    7. Compressor: Copeland reciprocating
    8. Heat Exchanger: Brazed plate design
    9. Refrigerant: R513a
    10. Max Heat Rejection: 8,700 BTU/hr (2.5 kW)
    11. Pump: Continuous duty, 1/3 HP fixed displacement pump with bypass
    12. Inlet/Outlet: 1/2″ NPT
    13. Reservoir: 4-gallon poly tank
    14. Frame: Galvanized steel
    15. Enclosure: Powder-coated steel with access panels
    16. Warranty: 1-Year Standard
    17. Certifications: ETL 3170655; UL STD 1994; CAN/CSA STD C22.2 No. 236
    18. Manufacturing: U.S.A., ISO 9001:2015 Certified
    19. Voltages Available: 120VAC / 1P / 60Hz (Standard); 208–240VAC / 1P / 60Hz
    20. Max Amps (FLA): 15.1 A (std); 9.2 A
    21. Recommended Breaker/Service (MCA): 18 A (std); 15 A
    22. Optional Upgrades: Anti-backflow, process heating, pass-through, external monitoring, alternate pumps/controllers

Q & A's

Questions & Answers about Freeze Chiller, 6000 BTU/hr, R513a, 120V/1P/60hz

Q: What is the cooling capacity of this chiller? —Michael R.
A: It provides up to 6,000 BTU/hr at rated conditions, with specific performance depending on fluid and ambient temperatures.
Q: Can this chiller handle continuous operation? —Jessica T.
A: Yes, the continuous-duty pump and industrial-grade components are built for long-term operation.
Q: What type of compressor does it use? —David L.
A: It comes equipped with a hermetically sealed Copeland reciprocating compressor.
Q: Is this unit environmentally friendly? —Samantha K.
A: Yes, it uses R513a refrigerant, which is an environmentally acceptable option.
Q: Can it be used in high ambient temperatures above 100°F? —Brian P.
A: Standard operation is rated for 40°F–100°F, but the factory can provide modifications for extended ranges.
Q: What warranty does this chiller come with? —Laura J.
A: It includes a standard 1-year warranty, with full UL/CSA certified assembly.
