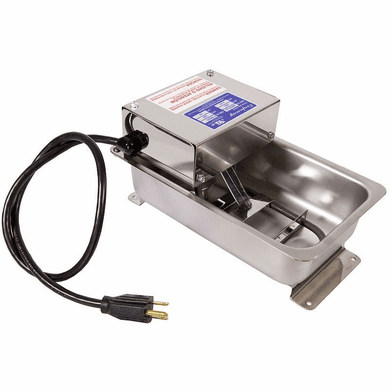

Briskheat® Evapoway Anti Condensate Pan | 120 Voltage | 21 x 13 x 4 in Pan | 15 qt Capacity | 8 gal Dissipation Rate | 1000 Wattage
Free Shipping

Item Number# 8BHDM10WW-1D
$266.50

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • PDFs
  • Reviews

Description

Briskheat-Evapoway-Anti-Condensate-Pan-|-120-Voltage-|-21-x-13-x-4-in-Pan-|-15-qt-Capacity-|-8-gal-Dissipation-Rate-|-1000-Wattage

These-anti-condensate-pan-evaporators-are-used-by-leading-companies-in-commercial-refrigeration,-HVAC,-vertical-transportation-(elevators),-and-many-more.-These-durable,-reliable-products-utilize-the-highest-quality-components,-including-NSF-certified-pans,-to-evaporate-defrost-and-condensation-where-no-drain-line-is-available-or-practical.

-They-can-dissipate-anywhere-from-1.5-to-24-gallons-of-condensation-water-per-day.-These-evaporators-have-successfully-passed-rigorous-testing-and-are-UL-recognized-in-both-the-United-States-and-Canada.-

With-a-large-variety-of-features-and-benefits,-the-evaporators-provide-you-with-multiple-configurations-to-meet-your-system's-exact-requirements.

Specifications

  • Pan Construction: Corrosion resistant 22 gauge stainless steel
  • Pan Size: From 10 x 7 x 2.5 in (254 x 178 x 64 mm) up to 21 x 13 x 6 in (533 x 330 x 152 mm)
  • Available Voltages:120, 208, 240 VAC Wattage Options: 200 to 3000 W
  • Dissipation Rate Options: 1.5 to 24 gallons per day (5.7 to 90.8 liters per day)
  • Power Cord: 36 in (0.9 m) long
  • 120 VAC includes standard 3-prong plug (NEMA 5-15)
  • 208 and 240 VAC has bare wire leads
  • Other lengths and terminations available upon request

Q & A's

Questions & Answers about Briskheat® Evapoway Anti Condensate Pan | 120 Voltage | 21 x 13 x 4 in Pan | 15 qt Capacity | 8 gal Dissipation Rate | 1000 Wattage
Free Shipping

Question: "What size pan do I need?" Bu Don T.
Answer "Your pan size should be based on the size of the unit you are using the pan with and the amount of water you need to evaporate. When replacing an existing unit, it is best to select the same model for replacement or consult a professional service technician. If you have questions or concerns about the unit, please call the case maker as they will have requirements for their unit. What are dissipation rates based on? The rates were based on performance and verified by an outside consultant using a specially formulated algorithm."
Question: Is there a warranty? My Oavid.B.
AnswerWith proper care and maintenance of the Evapoway unit, we offer a one year warranty. The warranty will be included in your shipment.
Question: How do I clean the pan? Hank C.
AnswerThe pans are made of stainless steel and respond well to cleaning with products made for that material. Our warranty indicates you should check and clean the pan at least monthly and keep it free of dust and debris.
Question: Do the Evaporators have a Float? Ben A.
AnswerYes, they do. The Evapoway pans have a float, similar to the ones we have in toilets, that is activated once the water level reaches a certain point. The float triggers the pan to turn on the heat to evaporate the water. When the water level is reduced back down to a certain level, the float triggers the pan to shut off the heat.
