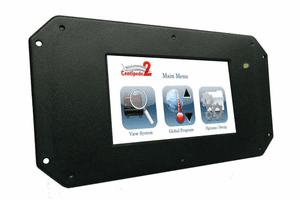

The centipede 2 Touchscreen Interface Unit acts as a Modbus master for up to128 Centipede 2 Modules. This unit displays real-time data for all zones and allows users to modify the major settings. It allows users to view the actual temperature, RTD status, set-point, high-limit alarm setting, low-limit alarm setting and power duty cycle of each heater.

  • Easy-to-use full-color touchscreen operator interface forCentipede 2®Control Modules
  • Globally program and monitor up to 4 different lines of heaters from one interface (up to 128zones)
  • Ability to the data stream to a central monitoring system
  • Bi-directional communication
  • Displays the power duty cycle of the heater to measure energy efficiency Ordering Information Contact us for a
  • quotation and application assistance.
  • Part Number:C2MOD-OI-7
    1. Monitors and edits up to 128 modules/zones: displays actual temperature, RTD status, set-point, high-limit alarm setting, low-limit alarm setting, and power duty cycle of each heater
    2. Time/date stamped alarm messages in real-time
    3. The last 100 error messages are stored for easy diagnostics
    4. Ability to change settings individually or globally across system
    5. Automatically assigned zone addresses
    6. Includes four RJ-45 connectors to connect up to four different control strings of Centipede 2®Modules
    7. Up to 64 modules per string (128 total modules per system)
    8. Temperature setting range: 0°C to 320°C (displayed in °C)
    9. Maximum high-limit: 325°C
    10. Touch screen dimensions: 6”x 3.375”(152mm x 85mm)
    11. External communication protocols
    12. Modbus RTU over RS-232C
    13. Local User Interface (LUI) over RS-232C
    14. Dry contact master alarm relay: NO or NC (Normally Open or Normally Closed)
    15. Quickly and easily program the following parameters (individually or globally) across the system: temperature set-point, high-limit alarm temperature, and low-limit alarm temperature
    16. Universal input voltage: 100-240VAC
    17. Environmental temperature: 34°F to 131°F (2°C to 55°C)
    18. Storage temperature: -40°F to 185°F (-40°C to 85°C)
    19. Ambient humidity: 5 to 95% (non-condensing)
