Stainless Pump Tube Finish Thompson Chemical Pumps
Zoom

Stainless Pump Tube Finish Thompson Chemical Pumps

Item Number# 8PFS-A
$1,228.88

  • Description
  • You May Also Need
  • Q&As
  • PDFs
  • Reviews

Description

Stainless/Teflon/Tefzel Finish Thompson Chemical Pumps - 8PFS-A

  • Continuous-duty rated for aggressive liquids
  • Polypropylene, 316 stainless or PVDF models

    Designed for free-flowing liquids up to 2,000 cPs viscosity and 1.8 specific gravity. 40" long pump tube fits 2" bung opening. Seal-less design has 30 minute run-dry capability without damage. Features double suction impeller. Polypropylene and Kynar® pumps have convenient variable orifice discharge fitting. Totally Enclosed Fan Cooled Motor (TEFC) is designed for corrosive environments. 1/2 hp and 1 hp, double insulated, 110 volt, 50/60 Hz, singlephase. Handle has built-in switch, thermal overload protection with manual reset, 12' cord with plug. 1 hp motor includes speed regulator for precise adjustment of fluid flow. Open
    Drip-Proof Motor (ODP) is designed for non-corrosive environments. 1/2 hp, 110 volt, 50/60 Hz, single-phase. Handle has built-in switch, thermal overload protection with manual reset, 12' cord with plug. Explosion-Proof Motor (EP) is 1/10 hp, double insulated, 110 volt, 50/60 Hz, single-phase, with 12' three-wire cord without plug. CSA-Listed for Class I, Division I, Group D. Air Motor (Air) develops 1/2 hp, uses 17 – 25 CFM @ 50 – 80 psi. Supplied with regulator valve and muffler. All pumps in this series have a 1" hose barb. Note: When pumping flammables, use only a stainless steel pump tube with an explosion
    proof motor and be sure to use a static protection hose kit found in Accessories for Finish Thompson Pumps. Container will also require grounding. See Bonding and Grounding Wires.

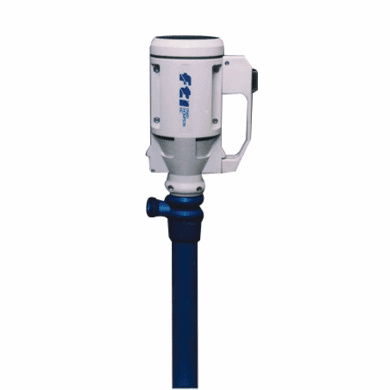

    Shown 8PFP-A

    Features:

    Internals: Stainless/Teflon®/Tefzel
    Max. GPM: 30
    Max. Temp.: 220ºF
    Max.Viscosity: 330 cps
    Motor: Air
    Pump Tube: Stainless
    Weight: 16 lbs.


    .
