Description

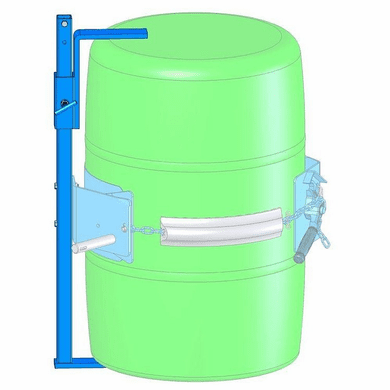

MORSE Bracket Assembly Kits
Prevent plastic drums from slipping through the drum saddle Install onto MORcinch or tube socket drum saddles When handling a plastic drum that is secured in a MORSE drum saddle the use of a Bracket (84556-P) or a Rim Clamp (84560-P) is required to prevent the plastic drum from slipping out of the saddle.
Avoid slipping plastic or fiber drums through the drum saddle. The bracket assembly acts as a brace at the top and bottom of your drum to keep it from sliding around in the holder.
Mount to MORcinch or tube socket drum saddles. For use with MORSE® drum handling equipment and rimless plastic or fiber drums. Diameter Adapters 55/30-19 and 55/30-20 must be used in conjunction with the Bracket Option with drums ranging in diameter from 19 to 20.5 inches.
4556-P Bracket is the best all around choice. It is designed for use with rimless or rimmed plastic drums with diameters of 19" - 23.5" (30-55 gallon) and a height of 31" - 39". The 84556-P is also recommended when handling fiber drums within the same dimensions. All necessary hardware is included along with installation instructions.
84560-P Rim Clamp may be preferred when handling plastic drums that have a top rim and a diameter of 22" - 23.5" (55 gallon). All necessary hardware is included along with installation instructions. Diameter Adapters are required for drums under 22" in diameter. Adapters 55/30-19 and 55/30-20.5 should be used in conjunction with the 4556-P Bracket or 4560-P Rim Clamp. Note: 55/30-14.5, 55/30-16 and 55/30-17 include adjustable top and bottom bracket-style supports of a different design.
Features:Description: Bracket assembly kit
Weight: 18 lbs.
Prevent plastic drums from slipping through the drum saddle Install onto MORcinch or tube socket drum saddles When handling a plastic drum that is secured in a MORSE drum saddle the use of a Bracket (84556-P) or a Rim Clamp (84560-P) is required to prevent the plastic drum from slipping out of the saddle.
Avoid slipping plastic or fiber drums through the drum saddle. The bracket assembly acts as a brace at the top and bottom of your drum to keep it from sliding around in the holder.
Mount to MORcinch or tube socket drum saddles. For use with MORSE® drum handling equipment and rimless plastic or fiber drums. Diameter Adapters 55/30-19 and 55/30-20 must be used in conjunction with the Bracket Option with drums ranging in diameter from 19 to 20.5 inches.
4556-P Bracket is the best all around choice. It is designed for use with rimless or rimmed plastic drums with diameters of 19" - 23.5" (30-55 gallon) and a height of 31" - 39". The 84556-P is also recommended when handling fiber drums within the same dimensions. All necessary hardware is included along with installation instructions.
84560-P Rim Clamp may be preferred when handling plastic drums that have a top rim and a diameter of 22" - 23.5" (55 gallon). All necessary hardware is included along with installation instructions. Diameter Adapters are required for drums under 22" in diameter. Adapters 55/30-19 and 55/30-20.5 should be used in conjunction with the 4556-P Bracket or 4560-P Rim Clamp. Note: 55/30-14.5, 55/30-16 and 55/30-17 include adjustable top and bottom bracket-style supports of a different design.
Features:
Specifications
- Description Bracket assembly kit
- Wt. 18 lb
- Pricing Unit Each
