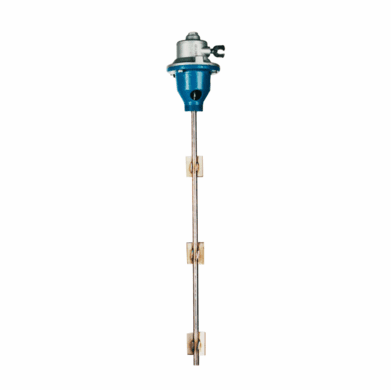

High Viscosity Gear Drive Closed Head Drum Mixers - Hgs-series Mixers Air Motor 3/4 - 1 Hp

Hgs-series Mixers Air Motor 3/4 - 1 Hp High Viscosity Gear Drive Closed Head Drum Mixers

For extra heavy liquids in closed-head drums

316 stainless steel wetted parts

Choice of motors up to 1 horsepower Special combination of propeller blades provides thorough mixing of extremely viscous liquids. Triple propeller shaft enters through and screws into 2" NPS bung opening.

NOTE: No cord or plug supplied on electric motors.. Must be wired according to local electrical codes and standards.

1. H-Series Mixers handle viscosities up to 8,000 cps, have three 2-blade props.
2. HGS-series mixers handle viscosities up to 32,000 cps have three two-blade fixed props and one 3 3/4 " folding prop, gear drive 430 rpm motor.
3. Motor Types: TEFC motor (Totally Enclosed Fan Cooled), 1725 rpm, single-phase 115/230 volt.
4. Explosion proof motor (Class1, Group D), 1725 rpm, single-phase 115/230 volt.

Air Motors (1/4 hp with 10 cfm @ 20 psi, 1/2 hp with 20 cfm @ 40 psi) and (3/4 hp with 30 cfm @ 25 psi, 1hp with 40 cfm @ 35 psi). Air motors deliver 0-2000 RPM.

Features:

Max. Viscosity (CPS).: 32000

Motor Description: 3/4 to 1 HP Air motor

Wt. (lbs.): 40

The HGS series of mixers can handle viscosities of up to 32,000 cP. (centipoise).

3/4 HP Air Motor with 30 CFM @ 25 psi for exceptionally heavy liquids in tight-head drums

1 HP air motor with 40 CFM At 35 pressure and a 430 RPM gear drive motor

The HGS series mixer with gear drive and air motor provides cost-effective mixing of extremely viscous liquids. A unique configuration of propeller blades ensures complete mixing of highly viscous liquids. Three 2 blade fixed propellers and one 3 3/4 inch foldable prop make up this triple blade propeller. On 55 gallon drums, the 316 stainless steel shaft and propellers enter via and screw into a 2 inch NPS bung aperture.
