Cleaning and Storage Tube For Bung-Entering Drum Mixers
Zoom

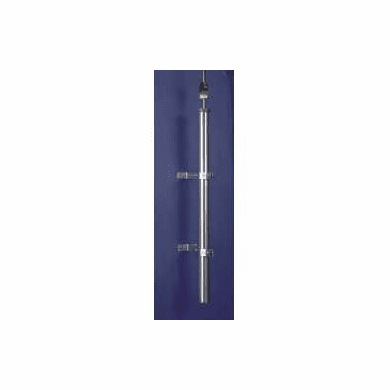

Cleaning and Storage Tube For Bung-Entering Drum Mixers

Item Number# 8DM55MT
$319.98

  • Description
  • You May Also Need
  • Q&As
  • Reviews

Description

  • For extra heavy liquids in closed-head drums
  • 316 stainless steel wetted parts
  • Choice of motors up to 1 horsepower

    Special combination of propeller blades provides thorough mixing of extremely viscous liquids. Triple propeller shaft enters through and screws into 2" NPS bung opening.

    NOTE: No cord or plug supplied on electric motors.. Must be wired according to local electrical codes and standards.

    H-Series Mixers handle viscosities up to 8,000 cps, have three 2-blade props.

    HGS-series mixers handle viscosities up to 32,000 cps have three two-blade fixed props and one 3 3/4 " folding prop, gear drive 430 rpm motor.

    Motor Types: TEFC motor (Totally Enclosed Fan Cooled), 1725 rpm, single-phase 115/230 volt.

    Explosion proof motor (Class1, Group D), 1725 rpm, single-phase 115/230 volt.

    Air Motors (1/4 hp with 10 cfm @ 20 psi, 1/2 hp with 20 cfm @ 40 psi) and (3/4 hp with 30 cfm @ 25 psi, 1hp with 40 cfm @ 35 psi). Air motors deliver 0-2000 RPM.

    Features:
    Max. Viscosity (CPS).:
    Motor Description: Cleaning and storage tube
    Wt. (lbs.): 4

    • DESCRIPTION
    • Now you can quickly and safely soak and clean bung entering industrial equipment, pump tubes, bung mixers, dip tubes and other bung process drum equipment more safely, thoroughly and quickly.
    • Minimize solvent use and operator or environmental exposure to messy or hazardous material splashing.
    • Tube is aluminum and includes plated steel wall brackets.
    • Helps reduce cross contamination between batch changes
    • Minimizes dangerous fume exposure during clean up
    • Helps prevent liquid spillage and solvent waste during clean up
    • Equipment diameter: 1.80 inches
    • Internal tube diameter: 1.85 inches
    • Overall tube length: 35 inches
    • Tube solvent capacity Approximately 1.5 quarts

      SPECS
    • Description: Cleaning and storage tube
    • Wt.: 4 lb

    • Call Our BayTec Customer Service Department At 800.560.2334 For More Information.
