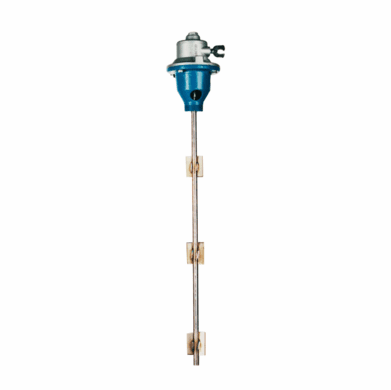

High-Viscosity Bung-Entering Drum Mixers,AIR Motor, 1/2 Hp hp
Zoom

High-Viscosity Bung-Entering Drum Mixers,AIR Motor, 1/2 Hp hp

Item Number# 8H4-0
$1,669.98

  • Description
  • You May Also Need
  • Q&As
  • Reviews

Description

  • For extra heavy liquids in closed-head drums
  • 316 stainless steel wetted parts
  • Choice of motors up to 1 horsepower

    Special combination of propeller blades provides thorough mixing of extremely viscous liquids. Triple propeller shaft enters through and screws into 2" NPS bung opening.

    NOTE: No cord or plug supplied on electric motors.. Must be wired according to local electrical codes and standards.

    H-Series Mixers handle viscosities up to 8,000 cps, have three 2-blade props.

    HGS-series mixers handle viscosities up to 32,000 cps have three two-blade fixed props and one 3 3/4 " folding prop, gear drive 430 rpm motor.

    Motor Types: TEFC motor (Totally Enclosed Fan Cooled), 1725 rpm, single-phase 115/230 volt.

    Explosion proof motor (Class1, Group D), 1725 rpm, single-phase 115/230 volt.

    Air Motors (1/4 hp with 10 cfm @ 20 psi, 1/2 hp with 20 cfm @ 40 psi) and (3/4 hp with 30 cfm @ 25 psi, 1hp with 40 cfm @ 35 psi). Air motors deliver 0-2000 RPM.

    Features:
    Max. Viscosity (CPS).: 4000
    Motor Description: 1/4 to 1/2 HP Air motor
    RPM: 0-2000
    Wt. (lbs.): 35
